Barrier

We also install barriers, mainly for commercial use. The main type of barrier we use is shown below, but this depends upon the size of the gap, etc.

640 automatic barrier

Flexibility
The 640 range of barriers is ideal for the traffic control in areas with particularly demanding use. The beam length ranges from 4 to 7 metres and bottom skirts can be fitted. A top and bottom skirt arrangement is available for beams up to 5 metres in length.

Leading edge technology
The 624 BLD control board has surface mount technology with a 2 digit display and 3 programming buttons. This allows simple setting of the operational parameters and enables the selection of a wide range of logic functions including a customised logic. A standard setting allows for a pair of barriers to work simultaneously.

Precise stopping
Perfectly calibrated stopping thanks to the adjustable electronic brake that slows down closing and opening movement. The control board activates a cooling fan when necessary allowing the barrier to be operated continuously.



Technical Spec
Power supply: 230v~+ 6%/-10% 50-60 Hz
Electric Motor: Single phase, bi-directional
Absorbed power: 220W
Current drawn: 1A
Motor winding thermal cutout: 1200C
Anti Crush System: Hydraulic valves (by-pass)
Duty Cycle: 100%
Mechanical Deceleration: Adjustable
Operating Temperature Range: -200C + 700C
Weight: 84Kg
Oil type: FAAC HP Oil
Barrier Opening Times: 4 - 8 seconds
Beam Length: 4 - 7m
Casing anti corrosion treatment: cataphoresis
Finish: polyester paint, RAL 2004
Housing protection: IP55
Cooling: forced ventilation with fan
Optional accessories: - skirt kit, - fork support, - automatic release solenoid valve, - anti vandal valve, - top and bottom skirt up to 5mydraulic


Diagrams and Dimensions

   Below is a diagram with dimensions of the 640 barrier.640 Barrier Dimension Diagram

   Below is a diagram with dimensions of the 640 barrier.

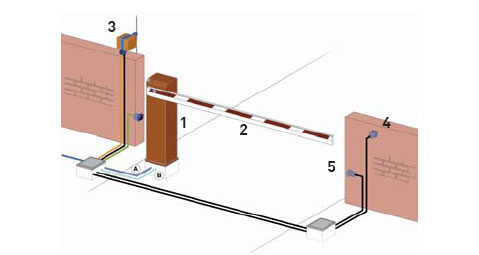

Installation Layout
