Giles Security Ltd


Fencing - Product Range

Please select from the following products or scroll down the page to view.


Chain Link Fencing

A well proven popular, versatile and easy to erect fencing suitable for a wide variety of applications. From a simple boundary marker to a permanent secure fence, there will be a specification of Chain Link suited to the purpose. Most chain link is available compact would and palletised. Standard PVC colours are green or black. Easy to erect on most types of post. No exact post centres required, ideal for re-clads or existing posts. Available in either barbed or knuckled edges or combination of both.

Chain Link Fence



Weld Mesh Security Fencing

Weld Mesh Security Fencing

Weld mesh security fencing rolls are one of the most comprehensive and widely used ranges of fencing products designed to cover the broadest spectrum of applications in almost every category of the modern fencing market.

Manufactured in accordance with BS 4102, using pre-galvanised hard drawn wire electro-resistance welded at every intersection, it is available in three different patterns (light, medium and heavy).




Paladin Fencing Panels

Paladin Fencing Panels

Paladin is the most popular weld mesh fence panel due to its innovative and unique appearance. It is regularly specified for a wide range of uses where an aesthetically pleasing appearance is essential.






Roll Top Panels

Roll Top Panels

The principle feature of this fencing is the unique and “user friendly” closed beam section located along the top and bottom edge of the panel. With no sharp or raw edges, Roll Top panels are suitable where safety is a consideration.




Nylofor 3-M

Nylofor 3-M

This is a 3 meter wide panel featuring horizontal reinforcements with double horizontal wires across the beam section for maximum security. The construction style means 20% less posts required, 20% less concrete and a reduction in installation time of 20%. A cost effective solution for industrial sites and long runs of fencing




Nylofor 3D

Nylofor 3D

The ideal solution for most types of boundary and low/medium security applications, Nylofor 3D is a very attractive and cost effective solution. The panels feature “V” shaped beams at the top, centre and bottom edges, which not only enhance the appearance but also provide an integral support spanning between the posts.

Nylofor Medium – similar in appearance to its sister product, Nylofor 3D. The medium panel although lighter in weight has a closer mesh pattern and, therefore, provides a longer delay factor against cut-through. The “V” shaped beams are also reinforced with additional wires to enhance the rigidity.




Nylofor 2D

Nylofor 2D

Heavy gauge weld mesh panels featuring twin horizontal wires, one positioned on either side of the verticals, offering both increased rigidity and resistance to cutting. The open mesh profile is decorative in appearance and allows excellent through vision making it suitable for many applications.

Nylofor 2D Super...

Nylofor 2D super – a more robust version of Nylofor 2D, these panels feature twin 8mm diameter wires, one positioned on either side of the verticals for maximum rigidity and resistance to cutting. With similar appearance and characteristics to Nylofor 2D, this product is also suitable for security applications, offering a higher degree of resistance to impact and vandalism of the fence.




Securifor 3D Panels

Securifor 3D Panels

Featuring a toe and finger-proof mesh aperture, this system combines an anti-climb and anti-cut fence with excellent through visibility and resistance to vandalism. These panels incorporate a pressed “V” beam section which not only enhances appearance but provides additional strength and support. The ultimate in discreet high security perimeter protection for schools, industrial and commercial premises.

Securifor Maximum Security:

Securifor Maximum Security






Expanded Metal Systems

The expanded metal diamond system provides a secure and cost effective alternative to palisade and chain link fencing. Easy to install and with a long life expectancy, Diamond has a unique post/stringer design with no protruding bolt, particularly suitable where public safety and security are a high priority.

Expanded Metal System Image 1 Expanded Metal System Image 2 Expanded Metal Systems Image 3

Features: Good through vision, mesh patterns 4095/2089, Galvanised to BS EN ISO 1461:1999, 3 meter centres, unique corner clamp assembly

Benefits: Ease of installation, Low maintenance, aesthetically pleasing, competitively priced, difficult to penetrate or scale

Mesh reference

Mesh Reference




Super Security Pattern

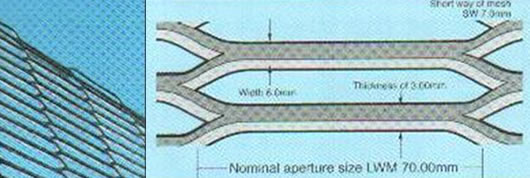

The super security system provides one of the highest levels of security available. In areas where the fencing needs to be robust to deter vandals, crime and to provide a high level of security. The special 7732 mesh is virtually impossible to cut with hand tools (diagram below right).

Features: Anti vandal fittings, galvanised to BS EN ISO 1461:1999, special parallel mesh strand 7732

Benefits: Maximum perimeter protection, excellent deterrent, virtually impossible to cut with hand tools, low maintenance, good through vision especially where CCTV is used.

Super Security Pattern


Palisade

Palisade fencing offers the ultimate in security. This system is easy to assemble and once assembled offers a fencing system that is robust, long lasting and a formidable deterrent against crime and vandalism. All steel palisade products are generally supplied hot dip galvanised to BS729 to give long term weather resistance. Pales can also be supplied in a plain mild steel finish or powder coated to a RAL specification.

Palisade



Palisade



Palisade



Palisade
